Here are the instructions on how to change the quad screen view to Split screen view on the multiplexer STSS1200 using IR remote/IR cable.
The STSS1200 is an advanced HD multiplexer designed to enhance your viewing experience with the DV6 and other compatible systems. It allows you to connect up to four additional cameras, enabling seamless transitions between single, split, tri, and quad screen displays. These transitions can be easily controlled using the included wireless remote, making it simple to customize your viewing options.
The following are some of the features & Benefits with Multiplexer:
- 4 standard analog and HD inputs
- 1080p output for ultra-clear views
- Standard CVBS output for use with older monitors
- Wireless keypad to switch views easily
- Additional views can be added depending on fleet requirements such as:
- Exterior side cameras (Left/Right, Front)
- Backup camera
- Additional interior camera (i.e., for long passenger buses)
- Trailer camera
- Interior cargo camera
For further details on how the multiplexer works and other integration of the camera/monitor combinations to use with the converter/multiplexer, refer to the DV6 Brochure on our website.

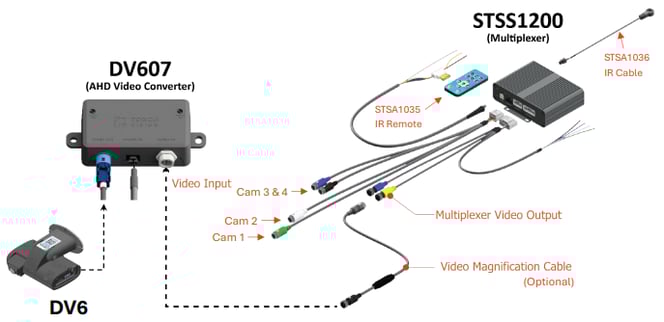

If there is a requirement of the multiplexer with HD converter (DV609) that is required to be installed with DV6 unit, mount the multiplexer in the designated location, see for STSS1200 QSG reference.
STSS1200
STSA1035 IR Remote Operation
Setup Dual-Screen on CH3 using Multiplexer Settings

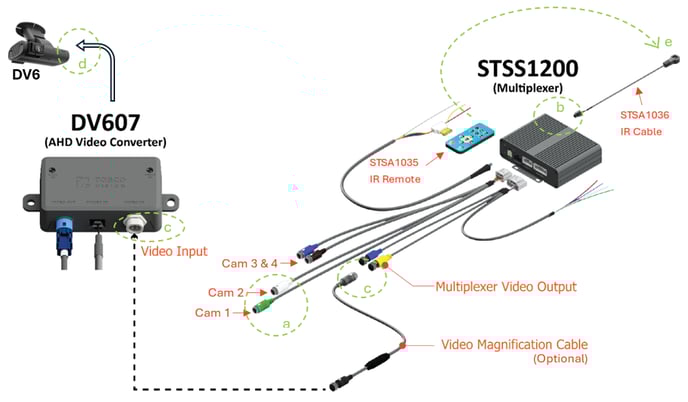

a. Connect Auxiliary Cameras 1 and 2 to the designated Ports 1 and 2 on the Multiplexer.
b. Connect the STSA1036 IR extension cable to the designated IR extension port located on the front side of the Multiplexer for optimal remote-control functionality.
c. Connect the Multiplexer Video output harness to the Video Input port on the DV607, using the Video Magnification Cable if needed.
d. Connect the entire system to the DV6 and power on the device. Refer to the DV6 Quick Start Guide (QSG) and the DV609 QSG for detailed instructions on connecting the DV6, DV607, or STSS1200 to the vehicle's battery.
e. Ensure that a coin cell battery is installed in the STSA1035 IR remote. Once the battery is in place, power on the remote by activating the power button.
f. Access the Live Stream for Channel 3 on the RoscoLive application. By default, the Multiplexer Screen is set to display a quad screen layout, as illustrated below.

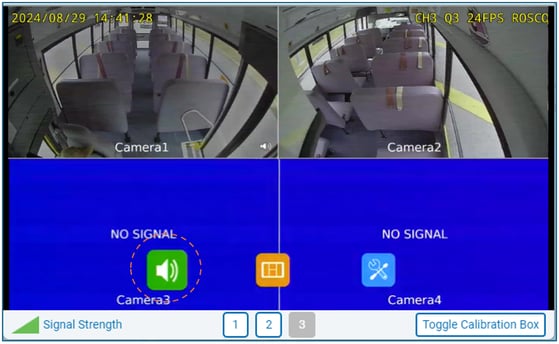

g. Aim the IR remote at the sensor of the IR extension cable and press the Menu button on the remote. This action will bring up the menu settings at the bottom of the CH3 screen within the RoscoLive Live Stream. You will notice that the “Volume” icon is highlighted by default.
h. Navigate to the “Mode” icon on the remote by pressing the VOL Right Arrow and then select the icon using the SEL button located beneath the DN Arrow button. This action will highlight the “Mode” icon on the screen and open a menu displaying all available modes. The Quad Screen mode is set as the default option in this menu.
[Note: The center button on the IR remote functions solely as the Menu button, not the Select button. The SEL button, located beneath the DN down arrow, is specifically designated for selection purposes.]

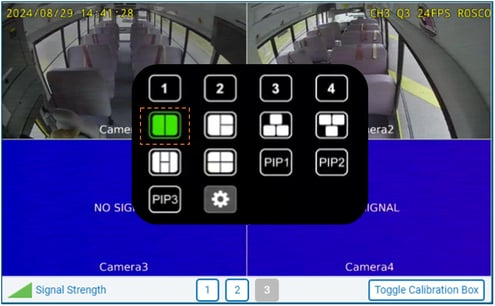

i. To switch from Quad screen to Dual screen when only two cameras are connected to the CAM 1 and CAM 2 ports, press the left VOL arrow button once, followed by the UP arrow button. This will navigate you to the Dual screen selection. Once selected, the Live Stream will update accordingly to display the Dual screen view as shown below.

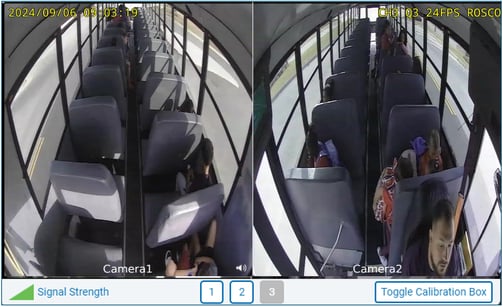

j. Press the SEL button to choose the Dual Screen option for viewing on CH3. Once selected, the Live Stream will display in Dual Screen mode as illustrated below.
[Note: To exit the mode window, you can either press the Menu button located in the center of the remote or simply wait for a few seconds, which will automatically close the selection window.]
k. To modify the display settings again, simply repeat the steps outlined above to switch between single, split, tri, and quad screen views as needed.
